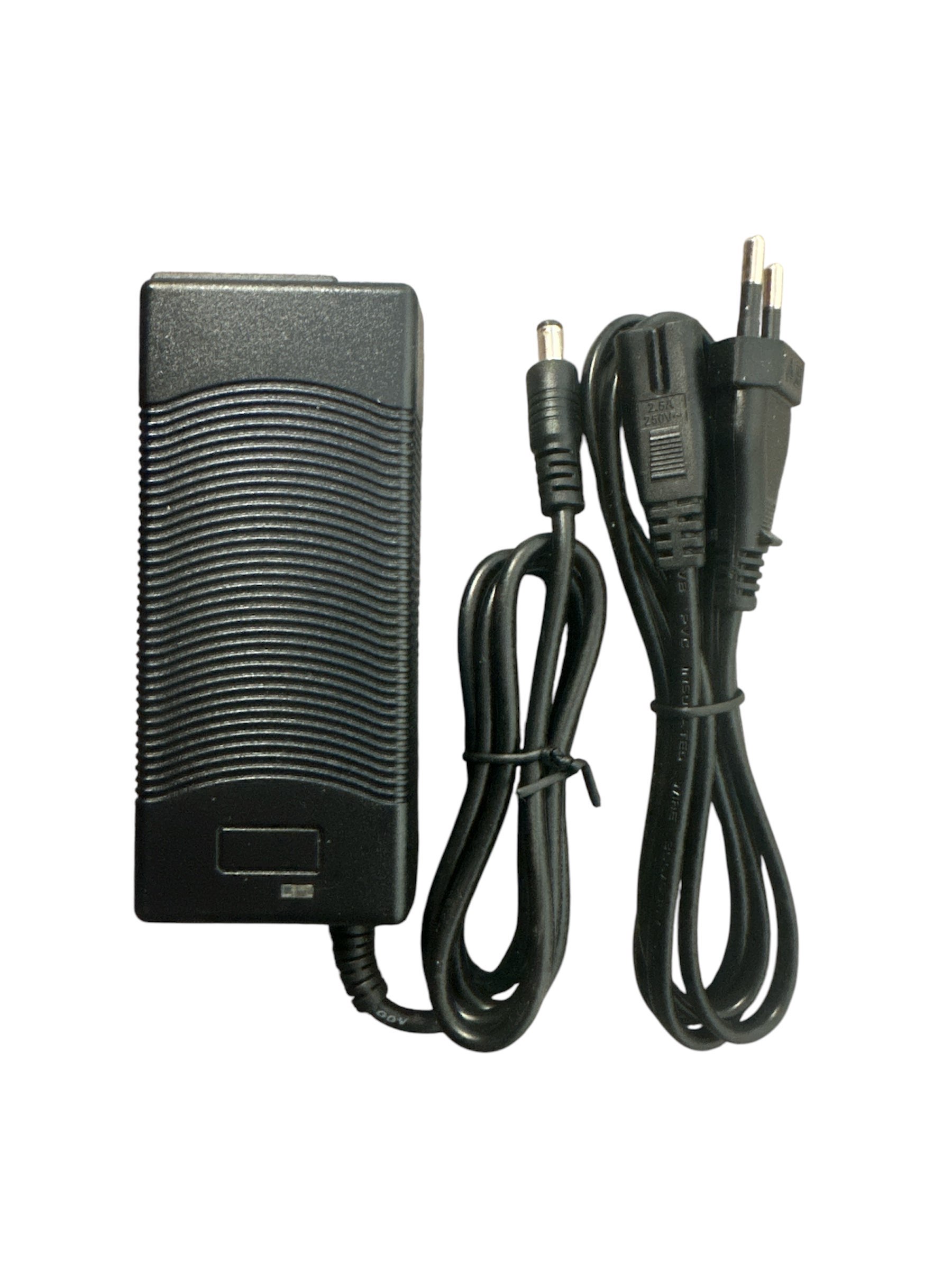

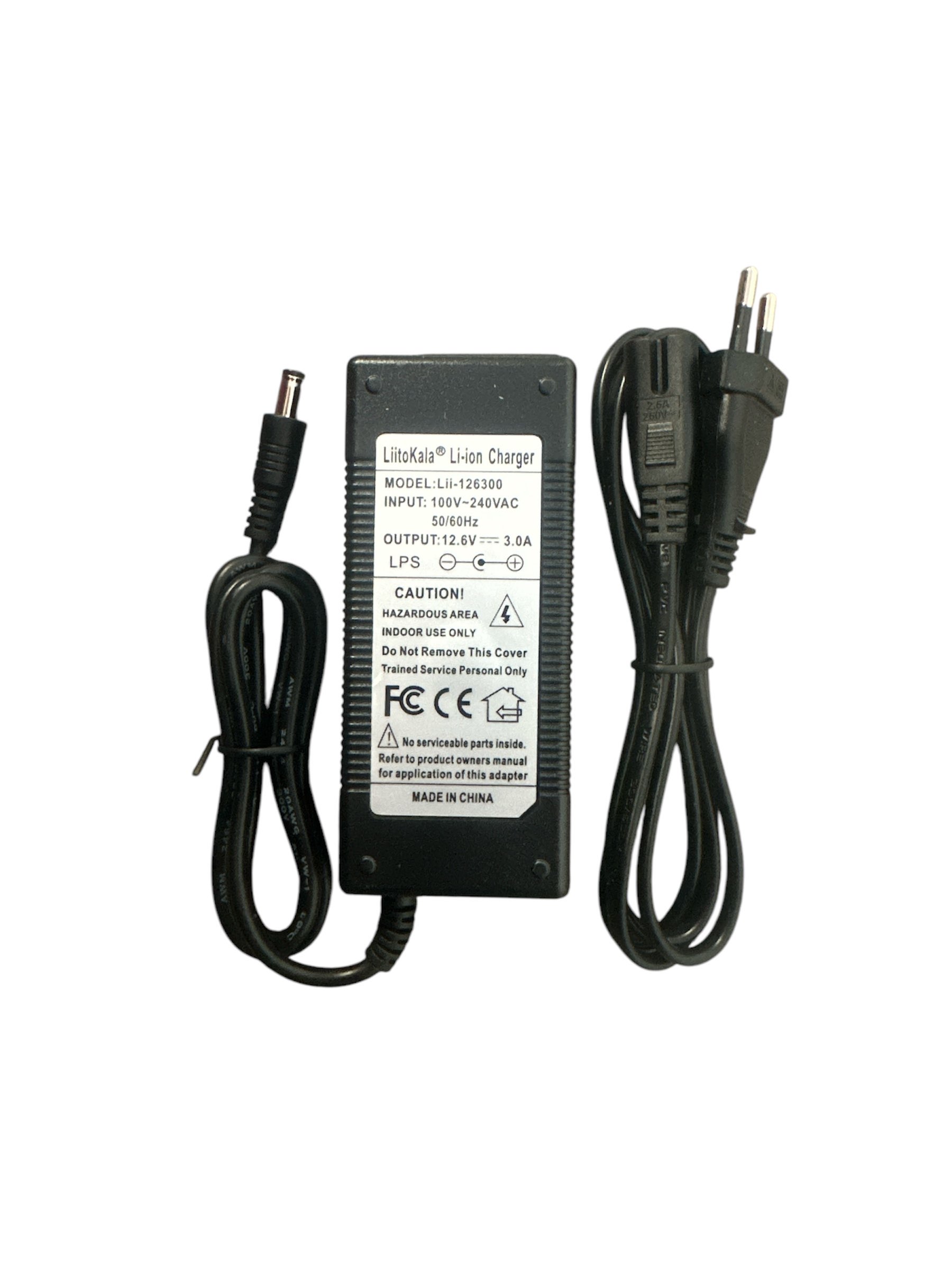

LIITOKALA 12.6V 3A 3S Lithium Battery Pack Charger

(0) 0 Reviews 0 Orders 0 Wish listed

R445.00

Quantity :

Total price :

(Tax : )

Product Dimensions :

Weight: 0.3 kg | Length: 9 cm | Width: 3.5 cm | Height: 16 cm

Overview
Reviews

The LIITOKALA 12.6V 3A 3S Lithium Battery Pack Charger is a high-quality charger designed for efficient charging of 3S lithium battery packs. It features a compact design and built-in protection system.

Specifications:

Plug Type	EU Plug
Charging voltage	12.6V (light green when no load)
Charging voltage range, the highest voltage is not higher than 12.8V, the voltage in the constant current phase is random- but not higher than 12.6V
Output current	3A (constant current charging, the indicator light is red)
Conversion current	300mA(after full conversion, the indicator light is green)
Ripple and noise (Note 3)	<150mVp-p (constant voltage)
Line adjustment rate (Note 4)	±0.8%
Load regulation rate (Note 5)	±1%
DC output power	40W
Efficiency	>80% (maximum output voltage, full load)
DC voltage adjustable range	0-12.6V
Input voltage range	100 ~ 240VAC; 47 ~ 63Hz; 140-350VDC
Input current	0.03A/230V
Inrush current	cold start current 2A/230V
Leakage current	<3.5mA
Overload protection	105%~150%, Type: FOLDBACK current limit output Reset: automatic recovery
Temperature coefficient	±0.03% °C (0 ~ 50 °C) OUTPUT
Start- rise- hold time	200ms, 50ms, 30ms
Shock resistance	10 ~ 500Hz, 2G 10min. / 1 cycle duration 60 minutes each axis
Pressure resistance, input–output	1.5KVAC
Isolation resistance, input and output	10M Ohms
Working temperature, humidity	-10 ° C ~ +50 ° C- 20% ~ 90% RH
Storage temperature, temperature	-10 ° C ~ +60 ° C- 20% ~ 90% RH
