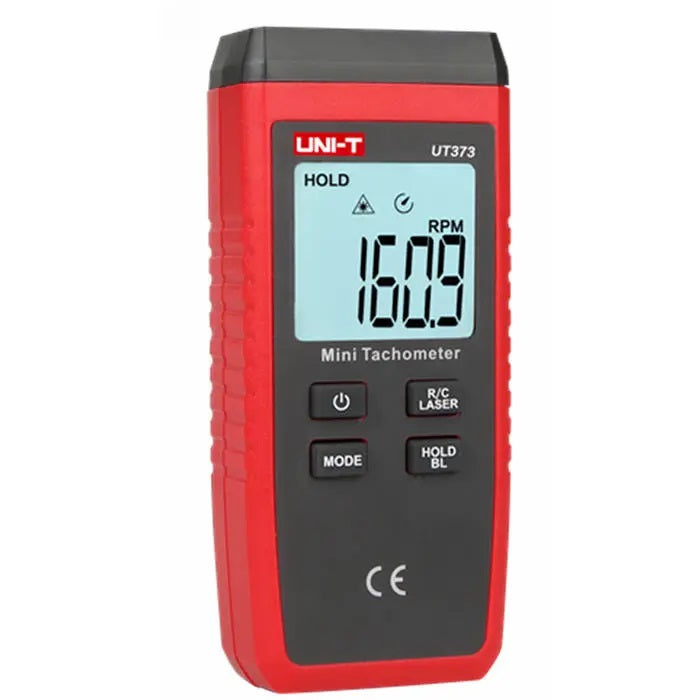

UNI-T UT373 Mini Digital Non-contact Tachometer

(0) 0 Reviews 0 Orders 0 Wish listed

R995.00

Quantity :

Total price :

(Tax : )

Product Dimensions :

Weight: 0.9 kg | Length: 18 cm | Width: 5.6 cm | Height: 3.4 cm

Overview
Reviews

UT373 is a reliable digital non-contact tachometer used to measure rotation speed of motors and other machines. This device is able to display results in RPM or revolution count. This portable device is able to safely measure rotational objects through a non-intrusive method.

Specifications	Range	Resolution	Accuracy
RPM measurement	10.0~9999.9RPM	0.1	±(0.04%+2)
	10000~99999RPM	1
Counting measurement	0~99999 count	1 count (<10kHz, pulse width10 ~ 90%)	±1 count
Features
Auto range	√
Auto power off	√
Low battery indication	√
Laser-on indication	√
Data hold	√
Maximum/minimum	√
Rotating speed/count function switching	√
Overload indication	√
LCD backlight	√
General characteristics
Refresh rate	About 1s to 7s (depending on the speed, >120 rpm for 1s)
Sensor type	Photodiodes and laser tubes
Target distance	50mm ~ 200mm
Measuring angle	The angle between the laser and the surface being measured is less than 30 °
Display	5-digit segment code; 99999 max display
Drop test	1m
Working temperature and humidity	0 ° C to 50 ° C (no more than 80%RH)
Storage temperature and humidity	-20 ° C to + 60 ° C (no more than 80%RH)
Protection rating	IP65
Power supply	3 1.5V batteries (AAA) (NOT Included)
Battery life	Continuous work for 12 hours
Product color	Red and grey
Product weight	85g (excluding battery)

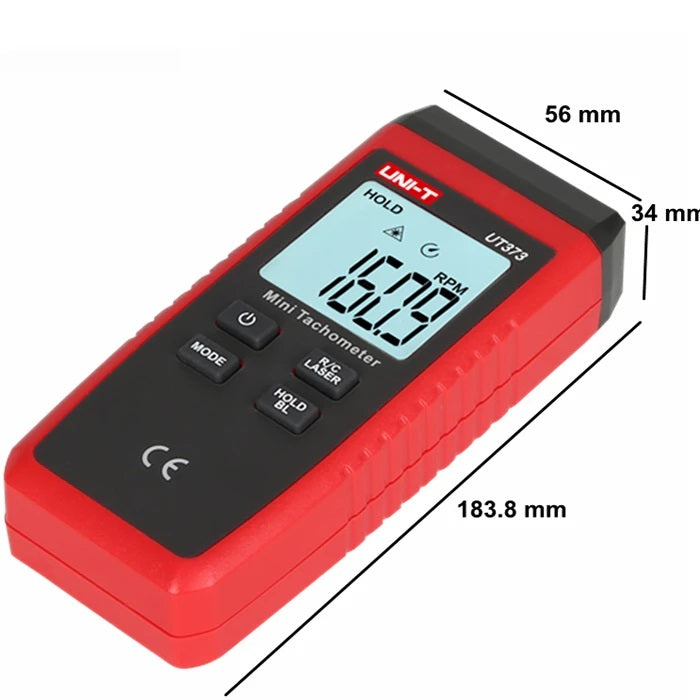

Product size	183.8 x 56 x 34mm
